    UL1581 Flame Test Chamber Electronic Component Tester For Electric Wire Cable Burning

    UL1581 Electric Wire and Cable Burning Testing Machine

    Product Description

    GC-UL1581 wire and cable burning tester is used to evaluate the flame retardant performance of the insulation layer of UL standard wires and IEC standard plastic pipes. The test chamber consists of a 4 cubic meter combustion chamber, operation module, model control, test frame, pressure gauge, flow meter, differential pressure gauge, combustion torch, solenoid valve, igniter, gas pipe, gas source, etc. It has high precision, stability and reliability, automatic ignition, stop burning time, burning time, number of burning and temperature adjustment function, etc.; flame temperature and test time digital display, and the burning situation can be observed through tempered glass.


    Test Standards:

    Section 1060: Vertical combustion and FT1 test

    Section 1061: Cable flame

    Section 1080: VW-1 flame test

    Section 1100: Horizontal test/FT2 combustion test



    Product Parameters
    Product NameUL1581 Wire and Cable Burning Test Machine
    Box volume≥4.0 m³. There are lights in the box and the system is controlled by a switch or a switch outside the box
    Timer0-99 minutes and 99 seconds can be set, and the minimum resolution is up to 0.01s
    Main fixturesTest stand and burning torch
    Test standMade of SUS304 stainless steel, divided into FT2 horizontal bracket and VW-1/FT1 vertical combustion test stand

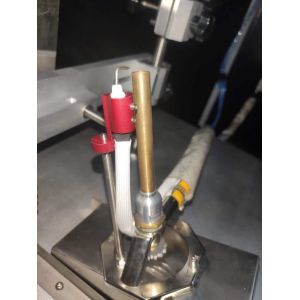

    Combustion blow torchImported blowtorch, meet the requirements of ASTM D5025-05
    Standard power500W
    Diameter of fire nozzle0.90±0.03mm
    Length of fire nozzle1.60±0.05mm
    Inner diameter of nozzle9.5mm
    Height of nozzle from air inlet100mm±10mm
    GasAt least 98% methane purity
    Flow meter range1000ml/min

    Packaging & Shipping

    UL1581 Electric Wire and Cable Burning Testing Equipment Flammability Test EquipmentUL1581 Electric Wire and Cable Burning Testing Equipment Flammability Test Equipment

    FAQ

    UL1581 Electric Wire and Cable Burning Testing Equipment Flammability Test Equipment
